Твердомер Роквелла XHR-150 для пластмассы

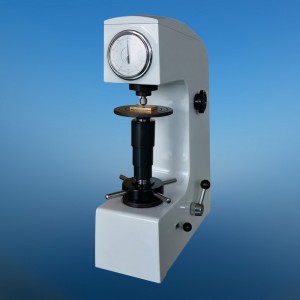

MODEL XHR-150 PLASTIC ROCKWELL HARDNESS TESTER

Feature & Use

• Manual testing process, no need for electric controlling.

• High quality integrated cast iron machine body, with the automotive paint treatment process, the appearance is smooth and beautiful.

• Read the hardness value directly from the dial gauge, and other Rockwell scales are optional.

• Frictionless main shaft, high test accuracy.

• Precise integral casting hydraulic buffer, no buffer liquid leakage, smooth loading without impact, and the loading speed is adjustable.

• Precision conforms to GB/T230.2, ISO6508-2 and ASTM E18.

        It’s suitable to determine the Rockwell hardness of plastic, composite materials, all kinds of friction materials, soft metals and non-metal soft materials. It features wide application range, easy operation, good economy and practicality.

Specifications

Measuring range: 70-100HREW, 50-115HRLW, 50-115HRMW, 50-115HRRW

Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

Max. height of test piece: 170mm

Depth of throat: 130mm

Min. scale value: 0.5HR

Dimensions: 466 x 238 x 630mm

Weight: approx. 65kg

Standard accessories

Large flat anvil: 1 pc.

Small flat anvil: 1 pc.

V-notch anvil: 1 pc.

1/8”, 1/4”, 1/2” Tungsten carbide ball penetrator: 1 pc. for each

Plastic Rockwell standardized block: 4 pcs.
